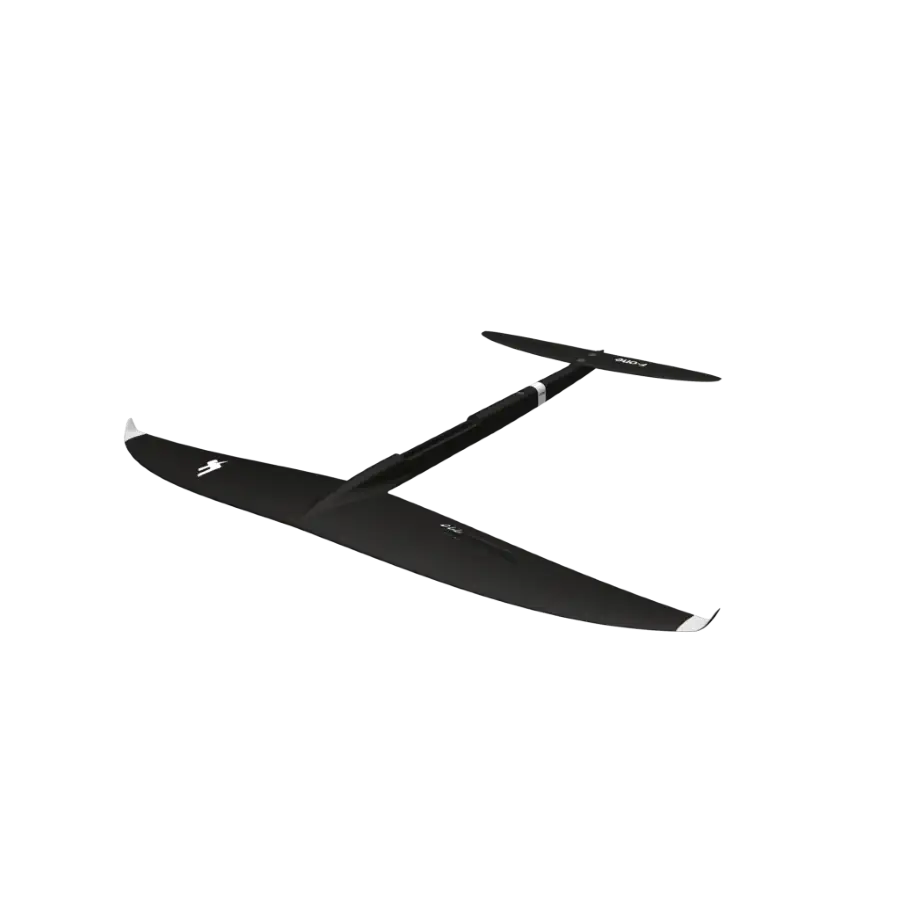

F-One Eagle HM Carbon Foil – Plane Pack

R24,619.00R24,995.00

F-One Eagle HM Carbon Foil – Plane Pack – The foils of the F-ONE EAGLE HM CARBON line are designed to bring you thrilling speed potential, incomparable downwind sensations, and everlasting cruising time above the water.

The EAGLE HM CARBON is the ideal foil for anybody seeking speed and fantastic downwind abilities. With its 9.5 aspect ratio, very thin profile and upturned winglets, the EAGLE’s induced drag is reduced to a minimum. It is a very efficient foil whose lift will allow you to stay above the water and cruise for longer than you could have ever imagined at any speed.

IN STORE – Ships today
FREE Delivery
F-One Logo

Description

Simultaneously, its upwind abilities are noteworthy, bringing comfort, stability, and constant speed to your wing foiling rides. Pumping is effective and precise, and maneuvering will feel easy in any conditions. Finally, the traction in your arms is reduced while wing foiling, thanks to the low drag of this foil.

*DOES NOT INCLUDE A MAST

F-One Eagle HM Carbon Foil – Plane Pack features

  • Aspect Ratio: 9.5
  • Remarkable speed and downwind performances
  • Unrivaled time above the water
  • Thin and optimized design for minimal drag
  • HM- The High Modulus Carbon fiber layup is 1.5x stiffer than the regular carbon fiber used in other constructions. The percentage of high modulus fiber has been carefully adjusted to obtain the best stiffness in both bending and torsion while keeping enough comfort for any kind of practice.
  • PRE PREG TECHNOLOGY- Pre-preg makes the foils stiffer and stronger. With pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ratio between epoxy and carbon and represents the highest quality process. It is then cured at high temperature, bringing strength and durability.
  • MONOBLOC STRUCTURE-  Having a stiff and solid assembly between all the parts of the hydrofoil is key to making it perform at its best as well as easy to handle.
  • TITAN CONNECTION- The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.

    Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.

Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The High Modulus Carbon fiber layup leads to even more rigidity and dependability that will propel you to incredible performances in each session. The TITAN connection allows to plug in either an aluminum or carbon mast, and the fuselage is split in two to facilitate transport.

The EAGLE HM CARBON foils are available in 790 cm², 890 cm², 990 cm²  to satisfy a wide range of riders looking for exhilarating sensations in wing foil and downwind. They are recommended with the DW210 HM stab, just as thin as the front wing. This stabilizer will allow you to gain even more speed and pumping efficiency.

*DOES NOT INCLUDE A MAST

Additional information

Brand

F-one

Activity

Wing

Components

Foils

Foil Size

790, 890, 990

Size Guide

AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)
EAGLE 690 690 82 9,7 0,92
EAGLE 790 790 86,5 9,5 1.10
EAGLE 890 890 92,5 9,6 1,23
EAGLE 990 990 97 9,5 1,31
EAGLE 1090 1090 102 9.5 1.48
EAGLE 1290 1290 110,5 9,5 1,58
